NRXBOT X2

We’re driven by innovation, built around intelligent technology, and focused on creating new possibilities through robotics.

NRXBOT X2 series

Fully Intelligent & Agile Robot
  • Friendly
  • Agile
  • Intelligent
APP Download
Affinity

Human-like Interaction

NRXBOT X2 supports multimodal interaction, including visual, voice, tactile, and facial expression capabilities.

By integrating user gestures, environmental data, and contextual information, NRXBOT X2 enables advanced intelligent dialogue, delivering natural and seamless communication across a wide range of application scenarios.

Agility

Lifelike Features

NRXBOT X2 supports multimodal interaction, including visual, voice, tactile, and facial expression capabilities.

By integrating user gestures, environmental data, and contextual information, NRXBOT X2 enables advanced intelligent dialogue, delivering natural and seamless communication across a wide range of application scenarios.

Intelligent

Autonomous Tasks

NRXBOT X2 supports autonomous navigation, proactive obstacle avoidance

Powered by algorithm-driven decision-making, enabling fully intelligent operation without the need for remote control.

Autonomous Task Processing

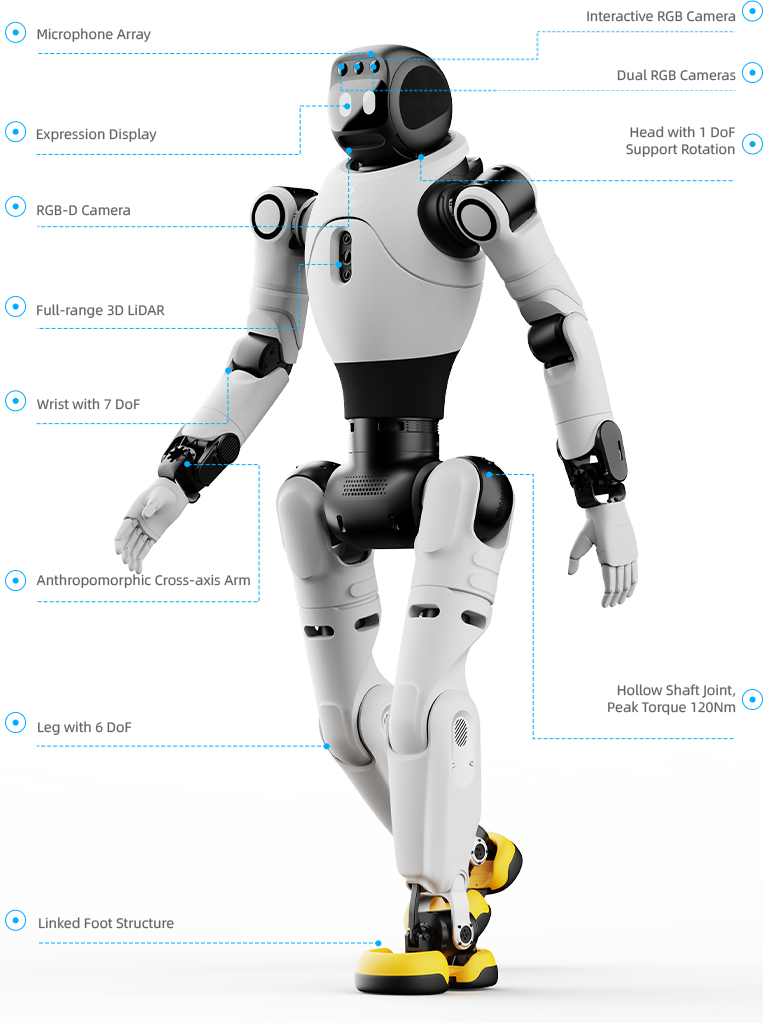

Autonomous Navigation
NRXBOT X2 Ultra is equipped with LiDAR and RGB-D cameras, enabling precise environmental perception and autonomous route planning
Proactive Obstacle Avoidance
With LiDAR, RGB-D cameras, front stereo vision, rear monocular vision, and intelligent algorithms, NRXBOT X2 Ultra can detect obstacles ahead, respond quickly, adjust its path proactively, and avoid collisions

High-DOF Bionic Body

Enables natural and seamless communication in every interaction

Autonomous Task Processing
Interactive RGB Camera
Supports facial recognition, object detection, gesture recognition, and environmental semantic perception
RGB-D Camera
Enables precise 3D spatial perception, providing depth-aware environment recognition to assist operational decision-making
Touch Sensor
Recognizes head-touch interactions.(When touched, the robot automatically nods or shakes its head as feedback)
Multi-line LiDAR
Acquires point cloud data, meeting high-precision positioning requirements for 3D SLAM.
Package Contents

Robot Unit*1

Charger*1

Remote Controller*1

Microphone*1

Quick Start Guide*1

Certificate of Conformity*1

Battery Packaging

Battery*1

Certificate of Conformity *1

NGRBOT X2 series

Product Specifications

  • All the above contents and images refer to the X2 Ultra. For other models, please refer to the product specification sheet.
  • The images shown are for reference only. The final commercial version may differ. Please refer to the delivered product as the standard.
  • End-effectors (Omnihand, OmniPicker) are only compatible with the X2 Ultra. They are not included as standard and must be purchased separately.
Item X2 X2 Ultra
Dimensions 1310mm（H）×
460mm（W）×
210mm（L） 		1310mm（H）×
460mm（W）×
210mm（L）
Height Approx. 1.31 m Approx. 1.31 m
Weight Approx. 35kg Approx. 39kg

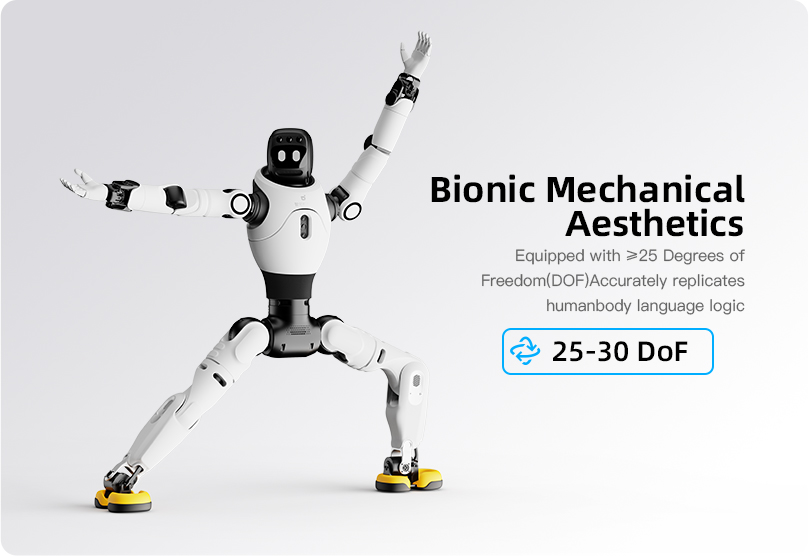

Total Degrees of Freedom 25 30
Neck DOF 0 1

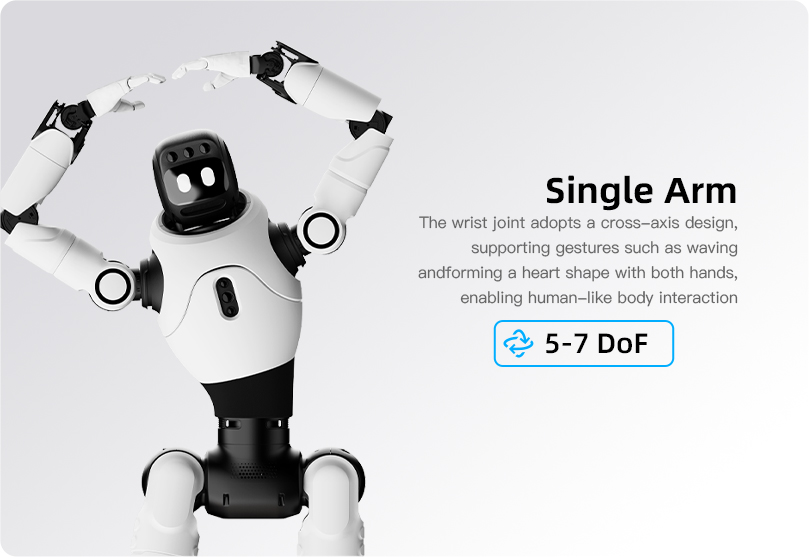

Arm DOF (per arm) 5 7

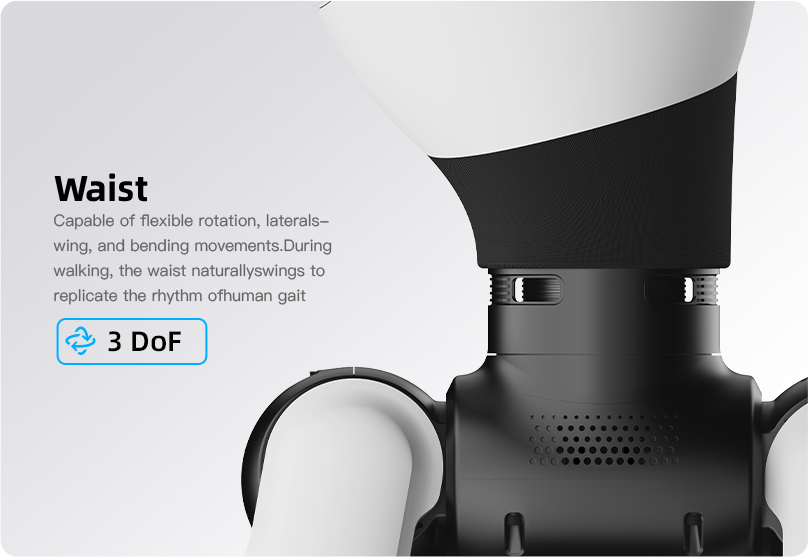

Waist DOF 3 3
Leg DOF (per leg) 6 6
Arm Reach 558mm
excluding end effector 		558mm
excluding end effector
Excluding end effector -10℃ to 40℃ -10℃ to 40℃
Perception System
3D LiDAR Not equipped Equipped
RGB-D Camera Not equipped Equipped
RGB Camera Interactive RGB camera Interactive RGB +
Front dual RGB +
Rear RGB
Head Touch Sensor Equipped Equipped
Communication
Communication Wi-Fi, Bluetooth Wi-Fi, Bluetooth
4G/5G module
Interaction Module
Audio I/O Microphone array,
wireless microphone,
speaker 		Microphone array,
wireless microphone,
speaker
Display Interactive screen, lighting effects Interactive screen, lighting effects
Performance Specifications
Peak Joint Torque 120N·m 120N·m
Walking Speed Up to: 1.8 m/s
typical ≤0.8 m/s
Laboratory Environment: ≤2m/s 		Up to: 1.8 m/s
typical ≤0.8 m/s
Laboratory Environment: ≤2m/s
Payload Capacity Max (in specific postures):
3kg
Excluding end effector

Across full range:
≤1kg
Excluding end effector 		Max (in specific postures):
3kg
Excluding end effector

Across full range:
≤1kg
Excluding end effector
Energy System
Battery Capacity Approx. 500Wh Approx. 500Wh
Operating Time At 0.5 m/s walking
Approx. 2 hours 		At 0.5 m/s walking
Approx. 2 hours
Power Supply Method Direct charging, swappable battery Direct charging, swappable battery
Optional auto-charging dock
Charging Time ≤1.5 hours ≤1.5 hours
Input Voltage 100~220V 100~220V
Charger Output 54.6V 10A 54.6V 10A
Intelligent Control Specifications
Main Compute Board RK3588 ×2 RK3588 ×2
High-performance Board Not equipped Orin NX (157 TOPS)
Hardware Expansion Interface
USB Ports Type-A ×1
Type-C ×1 		Type-A ×2
Type-C ×2
LAN Ports / RJ45 ×2
Power Output 12V/3A ×1
48V/5A ×1 		12V/3A ×1
48V/5A ×1
Others
Handheld Controller Included Included
OTA Updates Supported Supported
Mobile App Supported Supported
Secondary Development Not supported Supported
