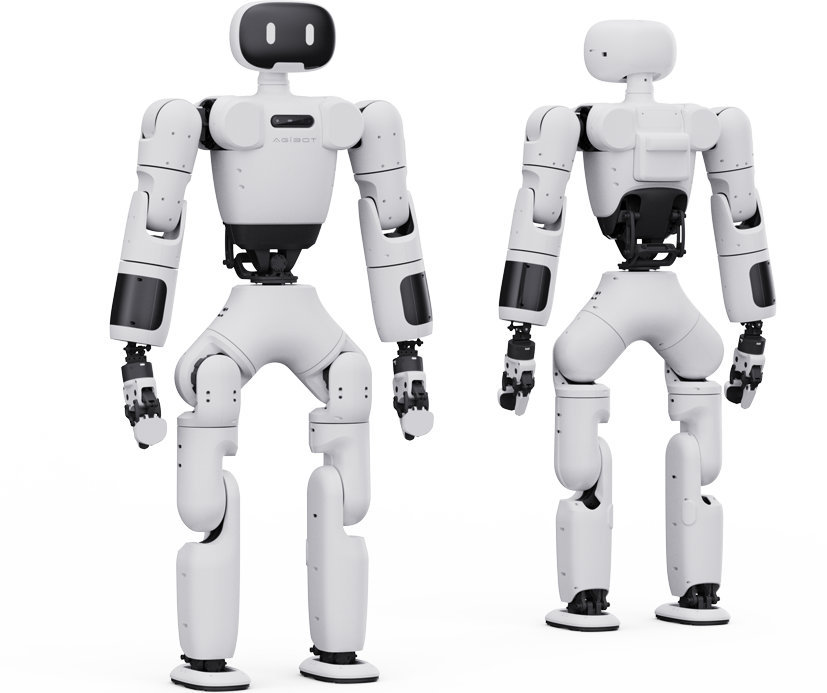

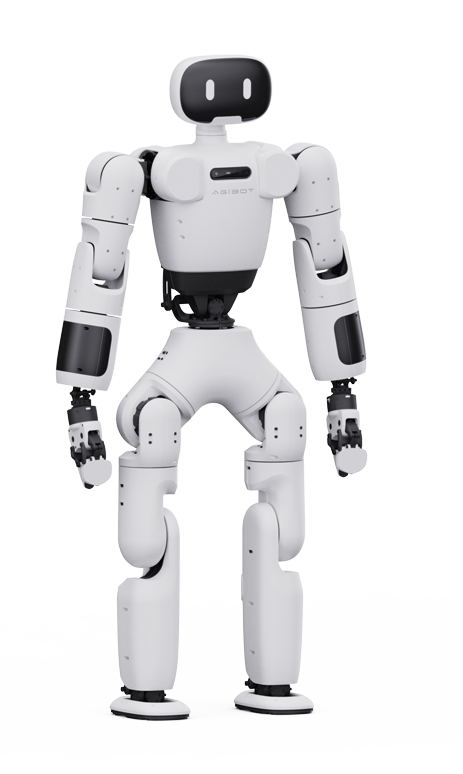

NRX BOT X1 Full-Stack Open-Source Robot
Modular Design, High Degree of Freedom, Safe and Lightweight, Highly Scalable
Product Specifications
DoF
Active Degrees of Freedom
cm
Height
kg
Weight
h
Runtime
m/s
Maximum Walking Speed
kg
Single Arm Load Capacity
Core Components

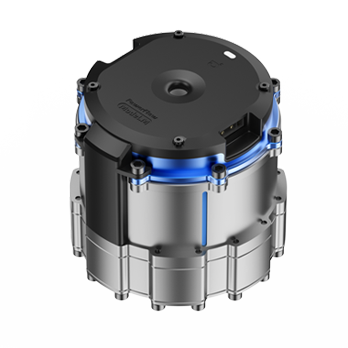

Parameter Index
- Product weight: 1.28 kg
- Product Size: Φ86*80.7mm
- Peak torque: 200N·m
- Peak Speed: 85rpm
- Rated voltage: 48V
- Rated rotational speed: 30rpm
- Rated torque:60N·m
Product Features
- Hollow wiring
- High integrated FOC drive
- Multi-turn absolute value encoding scheme
- Modular power configuration
- PF-Link Intelligent interface

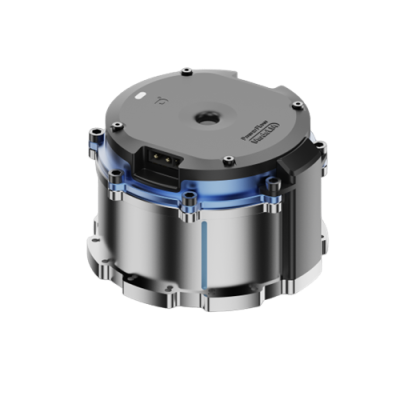

Parameter Index
- Product weight: 0.81 kg
- Product Size: Φ86*58.1mm
- Peak torque: 80N·m
- Maximum non-loaded speed: 260rpm
- Rated voltage: 48V DC
- Rated rotational speed: 70rpm
- Rated torque: 20N·m
Product Features
- Hollow wiring
- High integrated FOC drive
- Multi-turn absolute value encoding scheme
- Modular power configuration
- PF-Link Intelligent interface
Parameter Index
- Product weight: 0.45 kg
- Product Size: Φ52*71.6mm
- Peak torque: 19N·m
- Maximum non-loaded speed: 130rpm
- Rated voltage: 48V DC
- Rated rotational speed: 50rpm
- Rated torque: 6N·m
Product Features
- High integration FOC drive
- Multi-turn absolute value encoding scheme
- Modular power configuration
- PF-Link Intelligent interface

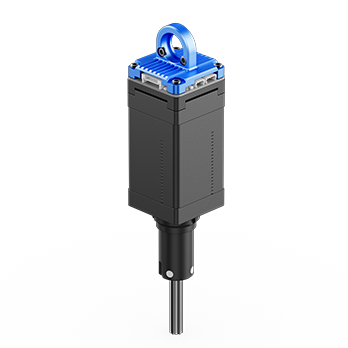

Parameter Index
- Product weight: 200g
- Maximum thrust: 110N
- Maximum speed: 50mm/s
- Rated voltage: 24V
Product Features
- FDCAN interface
- High thrust density
- High integrated all-in-one drive

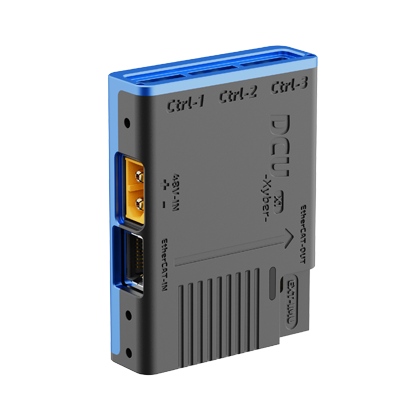

Parameter Index
- Product weight: 90g
Product Features
- High integrated power & communication solution
- 1kHz real-time communication forwarding, 100Mbps communication rate
- Provide secondary development SDK for Linux
- EtherCAT to 3-way FDCAN (5Mbps)
- Supports a maximum of 16 DCUs in cascade and hardware synchronization frames. Supports hardware-synchronized IMU interfaces. Supports interface expansion for SPI, UART, GPIO, and other interfaces
- OTA support

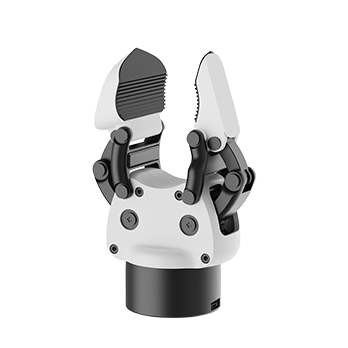

Parameter Index
- Product weight: 0.43Kg
- Maximum clamping force: 30N
- Maximum stroke: 120mm
- Opening/closing time: 0.7s
- Working voltage: 12V~30V
- Communication protocol: CAN, CANFD, RS485, serial port
Product Features
- Adaptive Mode & Clamping force
- Support clamping force self-locking
- Feedforward force control
- Built-in driver
